# Template Generation

# Initialize ego log templates

The ego command creates or reuses the ClickHouse instance record, creates the logger database, and creates the log table templates. Use the repository's runtime config and init TOML file:

./bin/clickvisual ego \
  --config=./config/default.toml \
  --init-config=./config/init-config.example.toml

1
2
3

The init file is TOML. Provide the ClickHouse DSN with clickhouse_dsn or --clickhouse-dsn; Kafka brokers and topics can likewise be set in TOML or with their flags.

If a clickhouse-instance record already exists, ego reuses it; reuse does not overwrite the stored DSN with the clickhouse_dsn from this run.

# Create templates through the API

In the full edition, call the API endpoint POST /api/v2/storage/ego for an existing database. The private-lite edition does not register the storage-creation API; use the clickvisual ego CLI instead. The API request requires an authenticated session (the default cookie name is clickvisual_session) and edit permission on the target database. If the deployment uses a subpath, include that subpath in the URL. The API creates templates only in an existing database: it does not create an instance or database, does not accept a cluster parameter, and uses the cluster metadata already stored on the target database. The CLI ego flow is responsible for creating or reusing the instance, creating the logger database, and performing cluster pre-validation.

When the four topics are omitted in CLI/TOML configuration, CmdFunc supplies the built-in defaults. All four topic fields are required in the full-edition API JSON body; the API does not supply defaults, so each must be non-empty. topicsEgo and topicsIngressStderr are compatibility fields required by the API, but the current template service does not use them or create their tables.

curl --location --request POST 'http://127.0.0.1:19001/api/v2/storage/ego' \
  --cookie 'clickvisual_session=<session-cookie>' \
  --header 'Content-Type: application/json' \
  --data-raw '{
    "brokers": "kafka:9092",
    "databaseId": 1,
    "topicsApp": "app-stdout-logs-ilogtail",
    "topicsEgo": "ego-stdout-logs-ilogtail",
    "topicsIngressStdout": "ingress-stdout-logs-ilogtail",
    "topicsIngressStderr": "ingress-stderr-logs-ilogtail"
  }'

1
2
3
4
5
6
7
8
9
10
11

# ClickHouse cluster

cluster is a name from ClickHouse system.clusters. It is not a Kubernetes cluster name or a node list. Uncomment it in TOML when cluster mode is needed:

clickhouse_dsn = "tcp://localhost:9000?database=default&username=default&password="
# ClickHouse cluster name; uncomment to enable cluster mode
# cluster = "shard2-repl1"

1
2
3

Or pass it on the command line (a non-empty CLI value wins over TOML, after trimming surrounding whitespace):

./bin/clickvisual ego --config=./config/default.toml \
  --init-config=./config/init-config.example.toml \
  --cluster=shard2-repl1

1
2
3

If cluster is omitted or empty, ego remains in standalone mode and does not query system.clusters. An explicit cluster is validated before the logger database and tables are created: an unknown name, query error, or 1 shard × 1 replica topology fails; a cluster with multiple shards or multiple replicas passes. --dry-run only parses configuration and prints a summary—no ClickHouse connection or validation and no DDL are performed. DSN logs show only configured or not configured, never credentials.

# Topics

Log topics come from topics_app, topics_ego, topics_ingress_stdout, and topics_ingress_stderr in the init TOML or from the corresponding command-line flags. The current template service uses topics_app and topics_ingress_stdout to create the app stdout and ingress stdout tables. When omitted in CLI/TOML configuration, ego supplies the built-in defaults; the API endpoint does not supply defaults and requires all four fields to be non-empty. The JSON fields topicsEgo and topicsIngressStderr are compatibility fields required by the API, but the current service does not use them or create those tables.

topics_app = "app-stdout-logs-ilogtail"
topics_ego = "ego-stdout-logs-ilogtail"
topics_ingress_stdout = "ingress-stdout-logs-ilogtail"
topics_ingress_stderr = "ingress-stderr-logs-ilogtail"

1
2
3
4

# Results

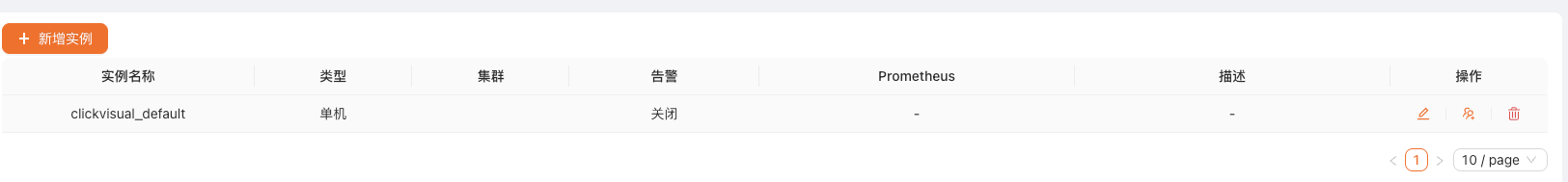

Created or reused a ClickHouse instance record

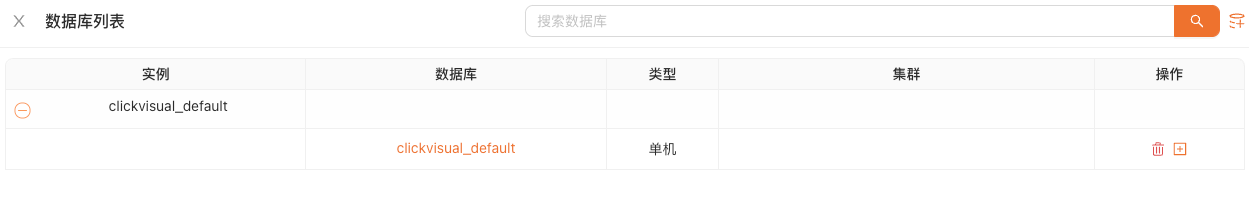

Created the logger database (using the optional cluster setting)

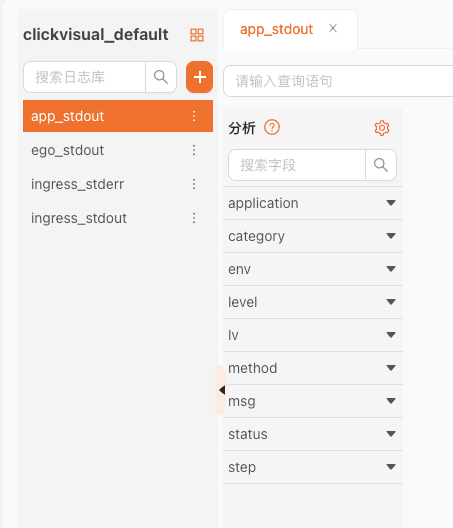

Created app stdout and ingress stdout log tables and consumption templates
Wrote log-table metadata and analysis fields
